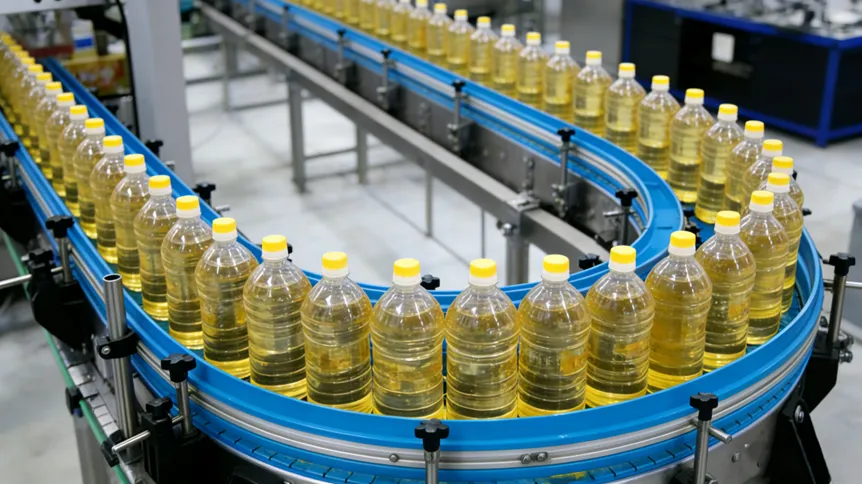

Oil production line
Oils include edible oils and industrial oils, edible oils include peanut oil, sunflower oil, palm oil, olive oil and so on.
MG provides the most suitable oil filling machine for all kinds of customers with different needs.
Features
Filling Oils and Liquids the Right Way
MG manufactures and provides a complete series of filling machines for various types of containers such as 0.1~5L bottles, 5~30L drums, IBC containers, etc.
With years of know-how in oil filling applications, we keep refining the design of our fillers to accommodate the different properties of every oil. Our systems provide high filling accuracy with effective anti-drip function for clean and uniform operation.
Features
01 High Accuracy
This servo driving piston technology guarantees that each container receives the exact amount of oil.
03 Non-drip Filling
Equipped with specially designed nozzles, the oil filling line minimize drips and spills.
05 Hygienic Design
Our automatic oil filling line emphasize hygienic design, incorporating stainless steel construction and easy-to-clean surfaces.
02 High speed
We design our oil bottle filling line to handle a high volume of bottles or containers quickly.
04 Ease of Cleaning
We design oil filling line to be easy to clean, with minimal parts that we need to disassemble for cleaning.
06 Automatic Control
We fully automate the oil filling systems, which ensure consistent quality and precise accuracy across all operations.
Complete a Whole Oil Filling Line

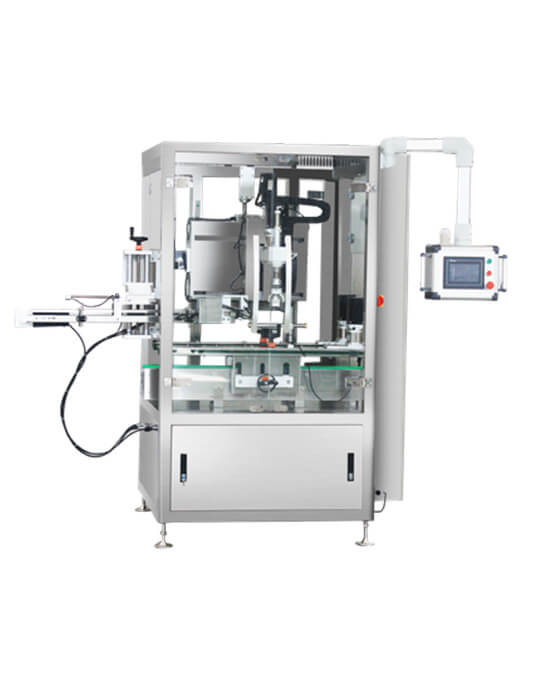

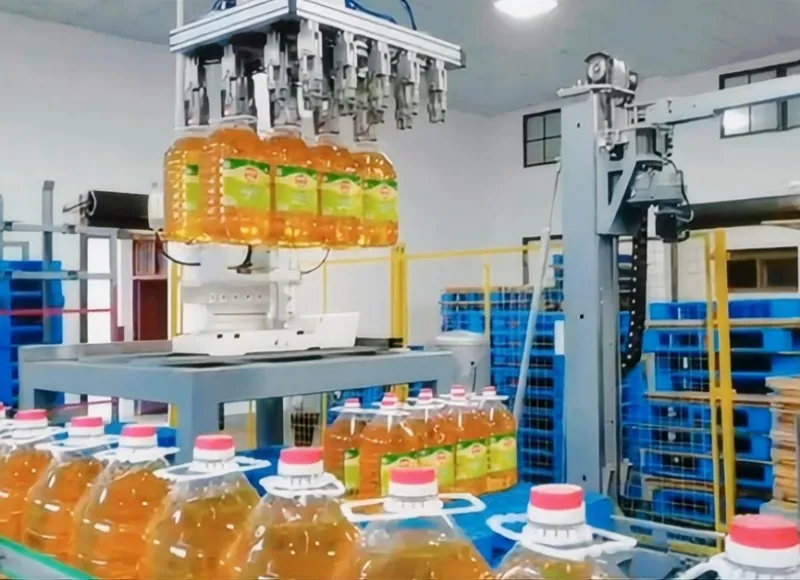

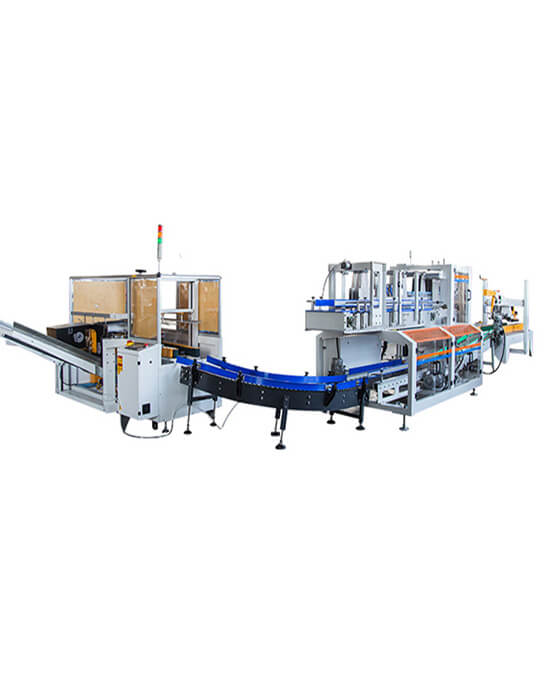

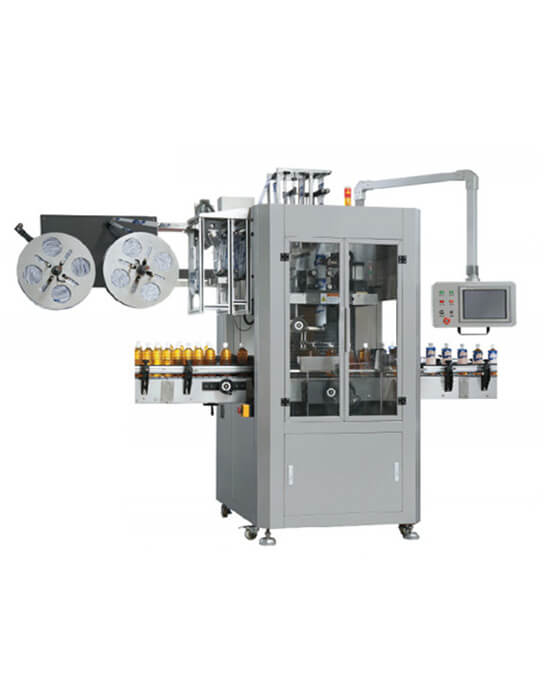

In order to establish a complete system for oil filling, other supporting equipment is needed including capping machine, labeling machine, conveyor, packing machine etc. Our Oil Filling Machines are manufactured to fit for changing needs of the oil industry. We offer dependable customized solutions that enable you to run efficiently. From equipment selection through installation and servicing, our team is with you all the way.
Detailed Parameters
| Project Name: Automatic Piston / Flowmeter Filling Machine | Oil and Fat Products | |||
| Bottle Material | Bottle Shape | Filling Range | Filling Heads | Production Capacity |
| PET / PP / PE / Glass / Metal | Round / Square / Unique Shape | 0.2L-6L | 4-80 | 1000-20000bph |
| Filling Valve | Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage. | |||
| Cap Closing Method | Applicability for both crowning and capping, mechanical instant sealing or servo controlled sealing | |||
| Bottle Components | Rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps | |||
| Filling Precision | Limit deviation: ±2-3g Standard deviation: 1.5 | |||
| User Ambient Conditions | Temperature: 10~40℃ Humidity: No dew | |||
| User Electrical Supply Specification | Voltage: 380V±5% 3phase Frequency: 50HZ±1% | |||
Details

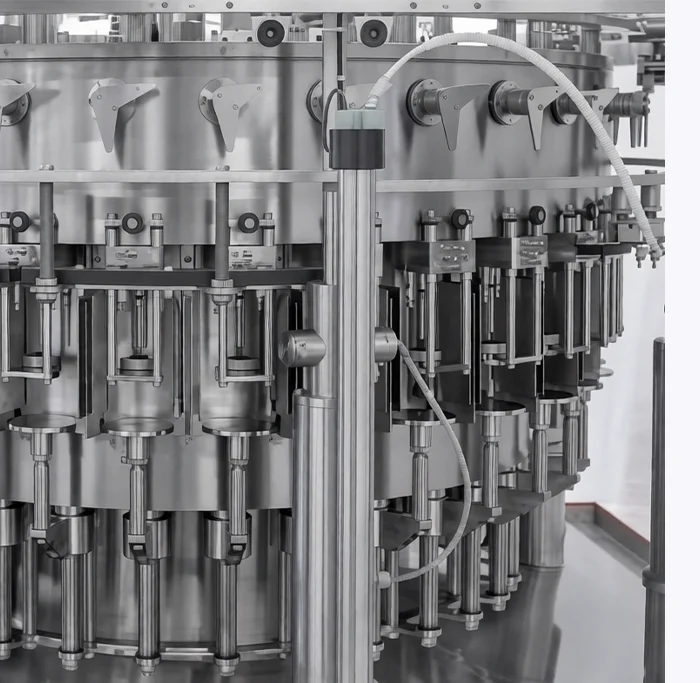

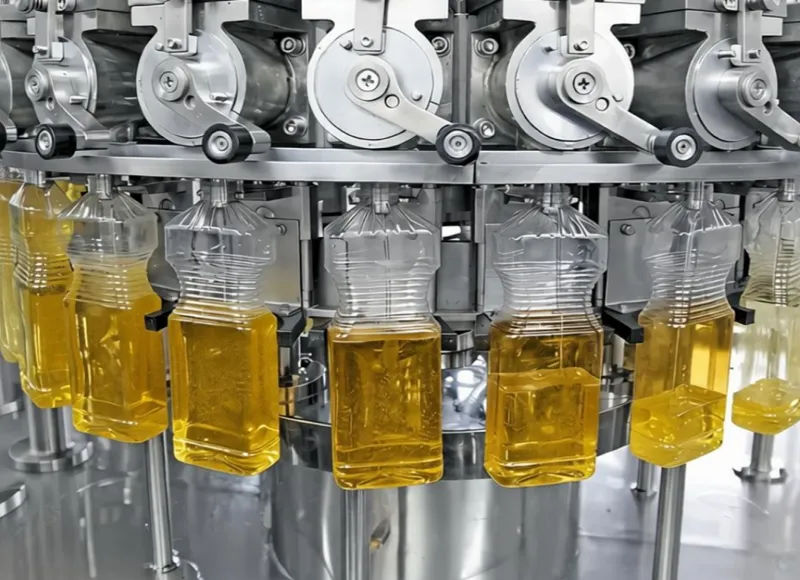

Based on their working principles and control methods, edible oil filling valves can be mainly classified into the following categories:

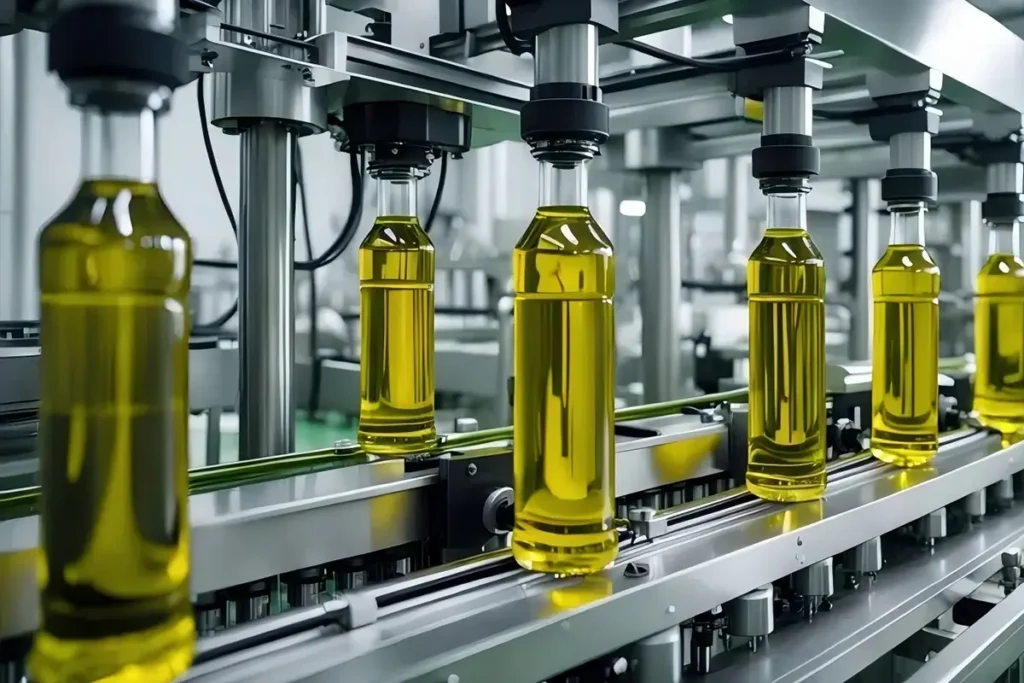

* **Flowmeter-type filling valves:**
This is one of the most widely used and highest-precision technologies in the edible oil filling field. Its core lies in using a high-precision flowmeter (such as a rotary encoder) to monitor the volume of oil flowing through the valve in real time.
* **Weighing-type filling valves:**
A weighing module is installed below the filling head. After filling begins, the control system reads the weight data in real time, employing a dual-speed filling strategy of “fast first, slow later,” switching to a slow, fine flow when approaching the target weight to ensure accuracy.
MG: Making Your Oil Filling Line Seamless and Simple
1.No More Accuracy Headaches
Oil thickness changes with the weather. You hate seeing bottles overfilled (wasting money) or underfilled (risking legal trouble) just because the workshop got a bit colder. The MG Solution: We use smart sensors that automatically adjust to your oil’s temperature and thickness. Whether it’s a cold morning or a hot afternoon, MG ensures every bottle is filled to the exact drop, saving you product and stress.
2. Say Goodbye to Greasy Messes
A single drip of oil can ruin a label, make the bottle slippery, and turn your floor into a safety hazard. Cleaning up the “oily mess” is a never-ending job for your team. The MG Solution: Our “Clean-Cut” vacuum nozzles suck back the final drop before moving to the next bottle. We keep your bottles dry, your labels perfect, and your floors clean, so you spend less time scrubbing and more time producing.
3. Solving the "Slow Foam" Problem
Fast filling often creates bubbles. If you have to wait for the foam to settle before capping, your entire production line slows down to a crawl. The MG Solution: Our nozzles “dive” to the bottom of the bottle and rise slowly as they fill. This bottom-up filling prevents bubbles from forming in the first place, allowing you to run your line at top speed without any foam-related delays.
4. Simple Tools for Real People
You’re worried that if your best technician leaves, no one will know how to run the complicated machinery, leading to expensive downtime. The MG Solution: We designed the MG interface to be as easy as a smartphone. With one-touch settings for different bottle sizes, your new operators can learn the system in minutes. We make the technology complex on the inside, so it stays simple for you on the outside.
we’re here to all your questions
What is an oil filling line?
An oil filling line is a production system designed to automatically rinse, fill, and cap edible or industrial oil bottles with high speed and accuracy. It ensures consistent filling volume and smooth workflow for oil packaging.
What types of bottles can the oil filling line handle?
The oil filling line can handle various bottle sizes such as small bottles, gallon bottles, and large containers like 3–20L, making it suitable for a wide range of edible oils and liquid products.
How does an oil filling line improve production efficiency?
An oil filling line automates the filling process, reducing manual labor, increasing output speed, and improving filling accuracy. It also integrates with labeling and capping machines for a complete packaging solution.
An oil filling line automates the filling process, reducing manual labor, increasing output speed, and improving filling accuracy. It also integrates with labeling and capping machines for a complete packaging solution.
Oil producers, food manufacturers, and packaging companies that produce edible oil, cooking oil, olive oil, palm oil, and similar liquid products benefit from an oil filling line to streamline production and maintain product consistency.
A Filling Solution That Doubles Efficiency
— Proven by 100+ Factories
Tell us your product, and we’ll match you with the most suitable filling solution.
